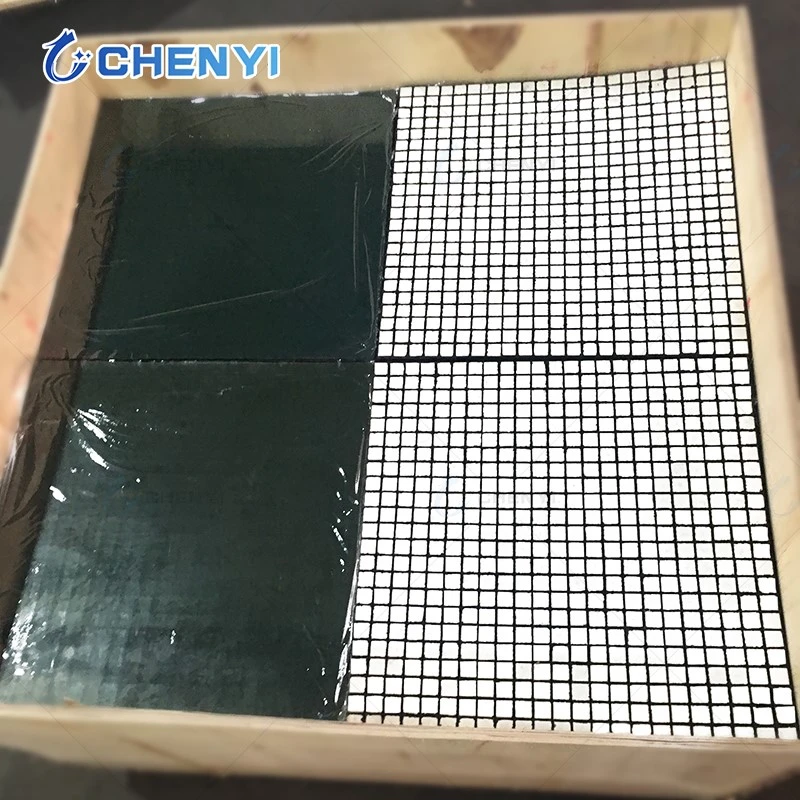

Factory Direct Sale Aggression ceramic liner for Mining
Aggression ceramic liner is an industrial lining material. It is usually composed of high-hardness ceramic materials such as alumina, silicon carbide, and silicon nitride. By combining with a metal matrix, it can protect the inside of equipment such as pipelines, conveying equipment, coal mills, and discharge chutes, effectively reducing downtime caused by wear.
Aggression ceramic liner Regular Size
|
Normal Size |
50~800 |
The detailed specifications are based on factual conditions |
|
Thickness of Wear-resistant Ceramic Liner(mm) |
3~50 |
|
|
Thickness of Rubber |
4~8 |
Remark: Other sizes are available upon request.
Aggression ceramic liner Technical Data
|
Name |
Project |
Unit |
Index |
|
Rubber |
Fracture Toughness |
20"C,Mpa % |
3.65 |
|
Thermal Shock Resistance |
ATc,°C |
250 |
|
|
Surface Roughness |
um |
V.9 |
|
|
Density |
g/cm3 |
≥1.2 |
|
|
Elongation |
% |
500 |
|
|
Tensile Strength |
Mpa |
18 |
|
|
Shore Hardness |
HA |
60±5 |
|
|
Peel Strength |
Mpa |
212 |
|
|
Temperature Range |
℃ |
-40-120 |
|
|
Steel |
Carbon Steel Plate |
Gpa |
Q235B,A36,SUS304 |
|
Thickness |
3-20 |
||
|
Bolt |
High Strength Bolts |
4.8Z8.8 |
|
|
Abrasion Resistance |
P=74N. n=800rpm. t=30min |
0.0005g |
|
Features
High Wear Resistance: Made from high - hardness ceramic materials such as alumina, it has excellent wear - resistant properties. It can withstand the wear and tear of ore particles, reducing equipment wear and prolonging equipment life1. For example, in ore - conveying pipelines, it can effectively resist the scouring of flowing ores.
Good Corrosion Resistance: Ceramic materials have good chemical stability and can resist the erosion of various corrosive media such as acids, alkalis, and salts1. This is very important in mining environments where there may be corrosive substances, helping to maintain the integrity of equipment.
High Temperature Resistance: It can maintain stable physical properties at high temperatures and is suitable for high - temperature working environments such as in some mineral - processing operations1. For example, in the smelting process, it can withstand the high - temperature impact of molten metals and slags.
High Strength and Impact Resistance: Some ceramic liners are added with toughening agents or use special manufacturing processes to enhance their strength and impact resistance. They can withstand the impact of falling ores and materials in mining equipment, preventing the ceramic liner from cracking or falling off.
Installation and Maintenance
Installation: The installation method of ceramic liners varies according to different equipment and usage scenarios. Common methods include glue - bonding, stud - welding, and bolting3. Glue - bonding is suitable for some occasions with low requirements for impact resistance; stud - welding can provide better stability and is suitable for high - temperature and high - impact environments; bolting is convenient for installation and replacement.
Maintenance: Regular inspections should be carried out to check for any wear, cracks, or peeling of the ceramic liner1. If problems are found, timely repairs or replacements should be made. In addition, the equipment should be properly maintained to avoid abnormal working conditions that could damage the ceramic liner.
