Product Introduction

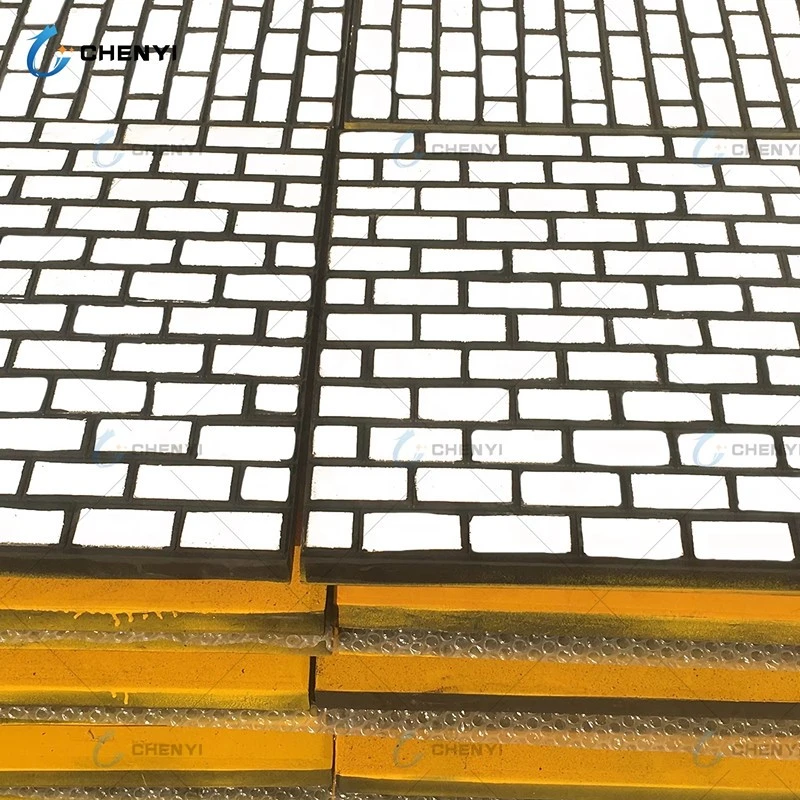

Alumina Rubber Liner is a composite material formed by combining alumina (Al₂O₃) with rubber materials. It is usually made of a wear-resistant rubber substrate and alumina particles through a special process. It can be widely used in ore crushing equipment, conveyor belts, pipelines and other fields.
Rugular Size Of Abrasion Alumina Rubber Liner
|
Normal Size |
50~800 |
The detailed specifications are based on factual conditions |
| Thickness of Wear-resistant Ceramic Liner(mm) |
3~50 |
|
|
Thickness of Rubber |
4~8 |
Remark: Other sizes are available upon request.
Alumina Rubber Liner Technical Data Sheet
|
Name |
Project |
Unit |
Index |
|
Rubber |
Fracture Toughness |
20"C,Mpa % |
3.65 |
|
Thermal Shock Resistance |
ATc,°C |
250 |
|
|
Surface Roughness |
um |
V.9 |
|
|
Density |
g/cm3 |
≥1.2 |
|
|
Elongation |
% |
500 |
|
|
Tensile Strength |
Mpa |
18 |
|
|
Shore Hardness |
HA |
60±5 |
|
|
Peel Strength |
Mpa |
212 |
|
|
Temperature Range |
℃ |
-40-120 |
|
|
Steel |
Carbon Steel Plate |
Gpa |
Q235B,A36,SUS304 |
|
Thickness |
3-20 |
||
|
Bolt |
High Strength Bolts |
4.8Z8.8 |
|
|
Abrasion Resistance |
P=74N. n=800rpm. t=30min |
0.0005g |
|
|
Category |
CY90 |
CYT92 |
CY95 |
CYT95 |
CY99 |
CY-ZTA |
ZrO2 |
|
Al2O3 |
≥90% |
≥92% |
≥95% |
≥ 95% |
≥ 99% |
≥75% |
/ |
|
ZrO2 |
/ |
/ |
/ |
/ |
/ |
≥21% |
≥95% |
|
Density |
≥3.50g/ cm3 |
≥3.60g/cm3 |
≥3.65g/cm3 |
≥3.70g/cm3 |
≥3.83g/cm3 |
≥4.10g/cm3 |
≥5.90g/cm3 |
|
Water Absorption |
≤0.1% |
≤0.1% |
≤0.1% |
≤0.1% |
≤0.1% |
≤0.1% |
≤0.1% |
|
HV 20 |
≥900 |
≥950 |
≥1000 |
≥1100 |
≥1200 |
≥1350 |
≥1100 |
|
Rock Hardness HRA |
≥80 |
≥82 |
≥85 |
≥88 |
≥90 |
≥90 |
≥88 |
|
Bending Strength MPa |
≥180 |
≥220 |
≥250 |
≥300 |
≥330 |
≥400 |
≥800 |
|
Compression strength MPa |
≥970 |
≥1050 |
≥1300 |
≥1600 |
≥1800 |
≥2000 |
/ |
|
Fracture Toughness KIc MPam 1/2 |
≥3.5 |
≥3.7 |
≥3.8 |
≥4.0 |
≥4.2 |
≥4.5 |
≥7.0 |
|
Wear Volume |
≤0.28 cm3 |
≤0.25cm3 |
≤0.20cm3 |
≤0.15cm3 |
≤0.10 cm3 |
≤0.05cm3 |
≤0.02cm3 |
Alumina Rubber Liner Advantages
Good thermal shock resistance
The lining material can withstand thermal shocks up to 250°C and has good thermal shock resistance. Even in an environment with drastic temperature changes, the lining can maintain stability and avoid damage due to thermal stress.
Good toughness and elasticity
At 20°C, the fracture toughness of the lining material reaches 3.65 MPa%, showing strong fracture resistance, which can effectively resist external impact and stretching, and reduce the risk of damage. The elongation reaches 500%, showing excellent flexibility and ductility, and can adapt to various high-stress environments without breaking easily.
Good corrosion resistance
The density of this material is greater than or equal to 1.2 g/cm3, with a high mass density, which can effectively prevent corrosion and wear, especially in the chemical and water treatment industries.
High strength and durability
The tensile strength of the alumina rubber lining is 18 MPa, ensuring that it still maintains good structural stability under high load conditions and is not easy to deform or crack. The Shore hardness reaches 60±5, indicating that the lining has moderate hardness and can effectively resist external wear without losing elasticity.
Good bonding and fixation
The peel strength of the lining is 212 MPa, which ensures a firm bond between the material and the substrate, making it difficult to peel or fall off, and enhancing the overall structural stability. 4.8Z8.8 grade high-strength bolts are used to provide stronger fixing force, ensuring safety and stability under heavy load conditions.
