Abrasion and Corrosion Resistant Ceramic Lined Pipe and Elbow

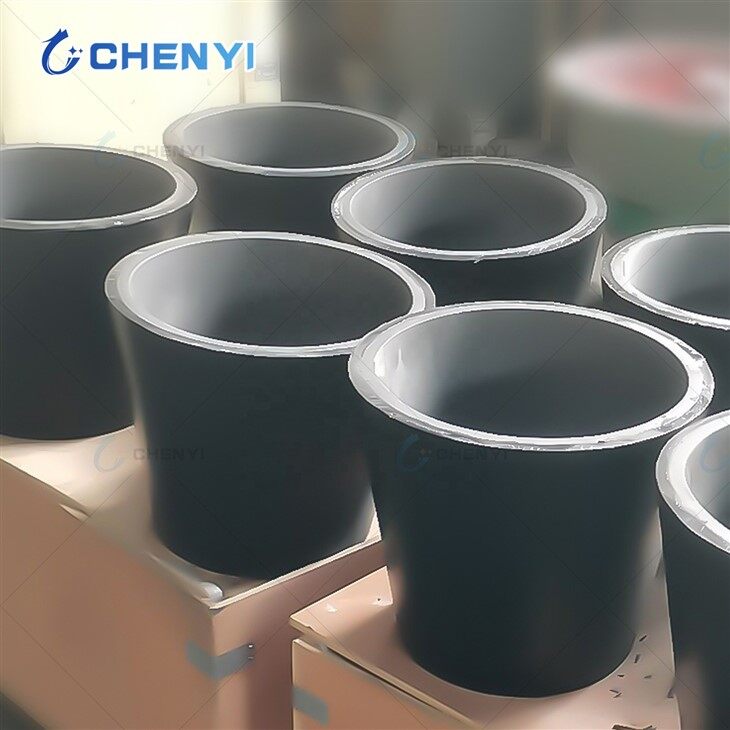

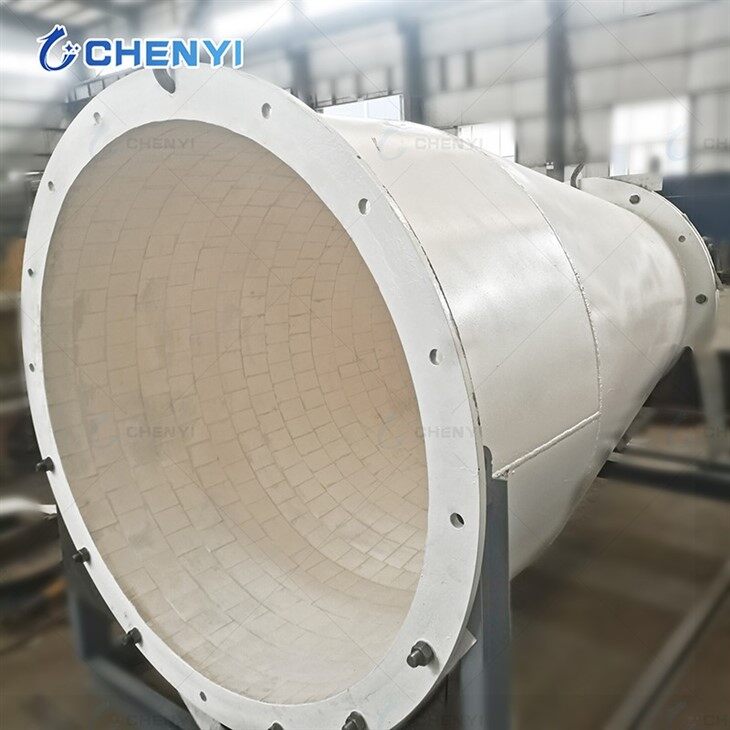

A ceramic-lined pipe or elbow is essentially a steel pipe or elbow whose interior surface is lined with ceramic tiles or cast ceramic material. The ceramic acts as a protective layer, resisting abrasion, erosion, and corrosion from the transported material.
Base Metal (Pipe/Elbow Body):
Usually carbon steel, stainless steel, or alloy steel.
Provides structural strength, impact resistance, and pressure handling.
Ceramic Lining:
Common materials: Alumina (Al₂O₃), Zirconia (ZrO₂), Silicon Carbide (SiC).
Extremely hard and resistant to wear, erosion, and chemical attack.
Lining thickness typically 6–20 mm, depending on abrasion severity.
Bonding/Attachment:
Ceramic tiles or cast linings are fixed with metal anchors, welding, or epoxy.
Proper bonding ensures the ceramic stays in place under high flow or pressure.
| Parameter | Typical Value/Range |
| Base Pipe Material | Carbon steel, Stainless steel, or Alloy steel |
| Ceramic Lining Type | Alumina (Al₂O₃), Zirconia (ZrO₂), Silicon Carbide (SiC),cast basalt |
| Ceramic Thickness | 3–30 mm (varies by application) |
| Bonding Method | Adhesive, Sintered, or Mechanical interlock |
| Operating Temp. | -40°C to +800°C (depends on adhesive/ceramic) |
| Pressure Rating | Up to 100 bar (customizable) |
| Diameter Range | 1" to 48" (25 mm – 1200 mm) |
| Length Custom | (typically 0.5–6 meters) |
| Hardness | (Mohs) 9 (Alumina), 8.5 (Zirconia), 9.5 (SiC) |
| Abrasion Resistance | 10–20x longer life vs. bare steel |
|
Performance Index |
92% |
95% |
|
Al2O3 |
>=92% |
>=95% |
|
Fe2O3 |
<=0.02% |
<=0.02% |
|
Compressive strength(Mpa) |
>=2000 |
>=2250 |
|
Hardness mohs |
>=9 |
>=9 |
|
Volume density(g/cm3) |
>=3.60 |
>=3.70 |
|
Water absorption(%) |
<=0.01 |
<=0.01 |
| Color of product |
white |
white |

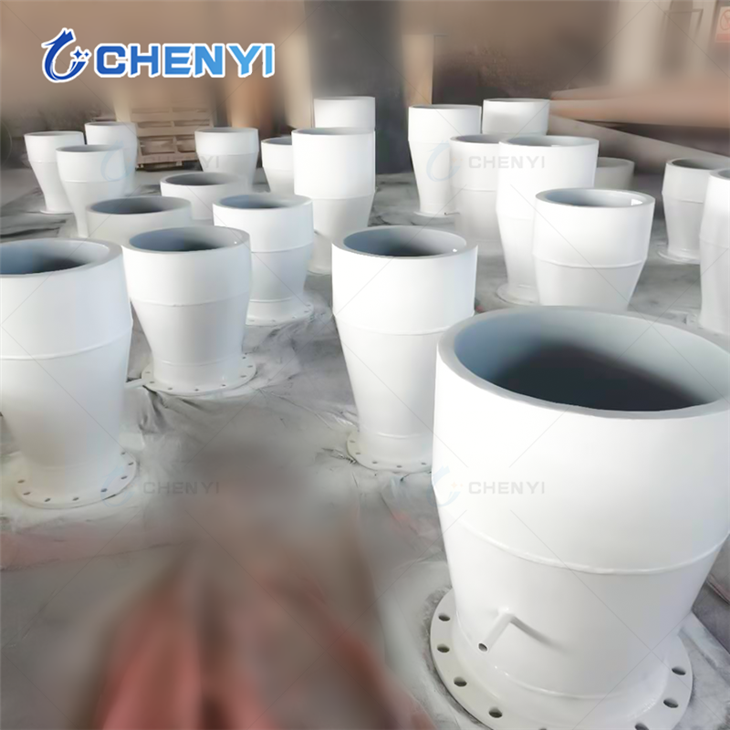

Manufacturing process of Abrasion and Corrosion Resistant Ceramic Lined Pipe and Elbow
| Manufacturing Method | Description | Key Characteristics | Typical Applications |
| SHS (Self-Propagating High-Temperature Synthesis) | A thermite reaction inside a steel pipe creates a dense, metallurgically-bonded alumina (corundum) layer . | High density, smooth surface, excellent bonding; withstands temperatures up to 800°C . | Power plants (fly ash), mining (ore slurry), steel plants . |
| Ceramic Tile / Sleeve Lining | Pre-engineered ceramic tiles or sleeves are bonded to the steel's inner wall using a high-strength epoxy adhesive . | Easy to install and repair; thickness is customizable; temperature limited by the adhesive (~200°C) . | Pneumatic conveying, cement plants, less extreme temperatures . |
| Monolithic Ceramic Insert | A single, curved ceramic piece is inserted and grouted inside a steel or GRP jacket . | Zero gaps in the wear surface; ideal for small diameters; precise dimensions for easy retrofitting . | High-wear elbows in steel plants (dust injection), foundries, glass plants . |

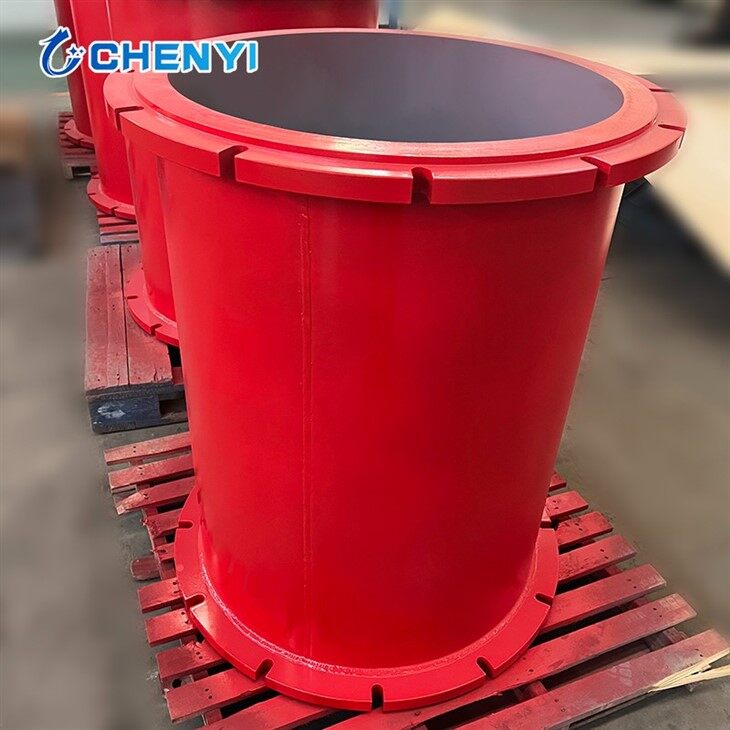

Ceramic-Lined Pipe Spools Applications
Ceramic-Lined Pipe Spools are used in all industry where wear resistance is needed.
- Mining & Minerals: Tailings, ore slurry, hydrotransport.
- Power Plants: Fly ash, bottom ash, FGD (flue gas desulfurization).
- Cement Industry: Clinker, raw meal, limestone slurry.
- Steel & Foundries: Shot blast, sand handling.
- Chemical Processing: Acidic/alkaline slurry transport.
Main Products
* Ceramic Rubber Wear Liners
* Linings, Coatings, Insulation & Corrosion Protection
* Alumina, ZTA and silicon carbide ceramics
* Ceramic Rubber Pulley Lagging
* Impact Bed/bars
* Other rubber and polyurehtane products
* Ceramic adhesive
We are ISO SGS approved manufacturer, SGS audited supplier, ISO9001 certified factory.
Typical Specifications and Options
Material Purity: Alumina content is typically 92%, 95%. Higher purity generally means greater hardness and corrosion resistance .
Size Range: Available from small bores like DN20 (3/4") up to large diameters like DN400 (16") or more .

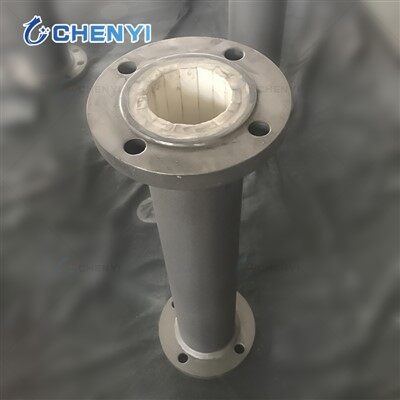

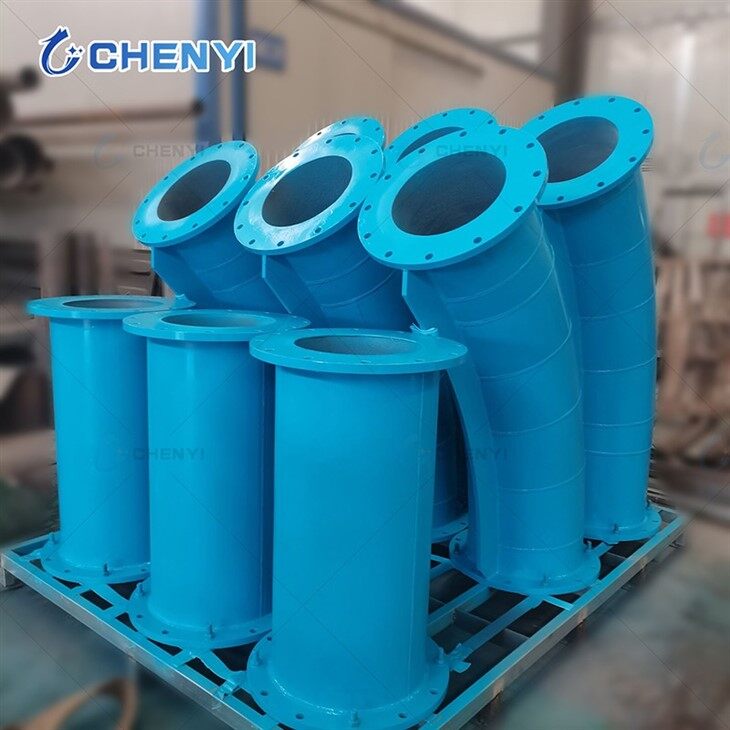

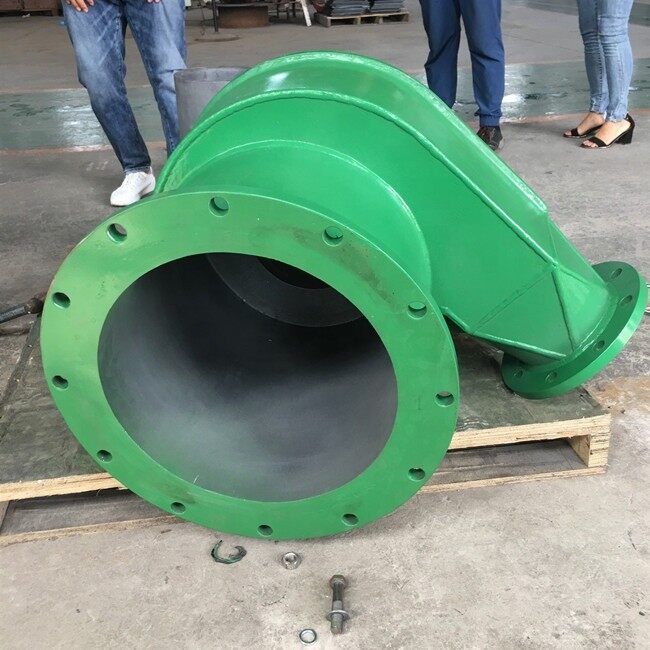

Standard Angles: Common elbow angles include 15°, 30°, 45°, 60°, and 90° .
Bend Radius: Can be customized, with common options like long-radius (R = 5D-10D) or short-radius designs .
Outer Casing Materials: Beyond standard carbon steel, options include stainless steel for added corrosion resistance, or GRP (Glass Reinforced Plastic) for lightweight applications .
Special Features:
Electrically conductive ceramics (e.g., Silicon Carbide) for explosive environments .
Wall thickness monitoring ports .

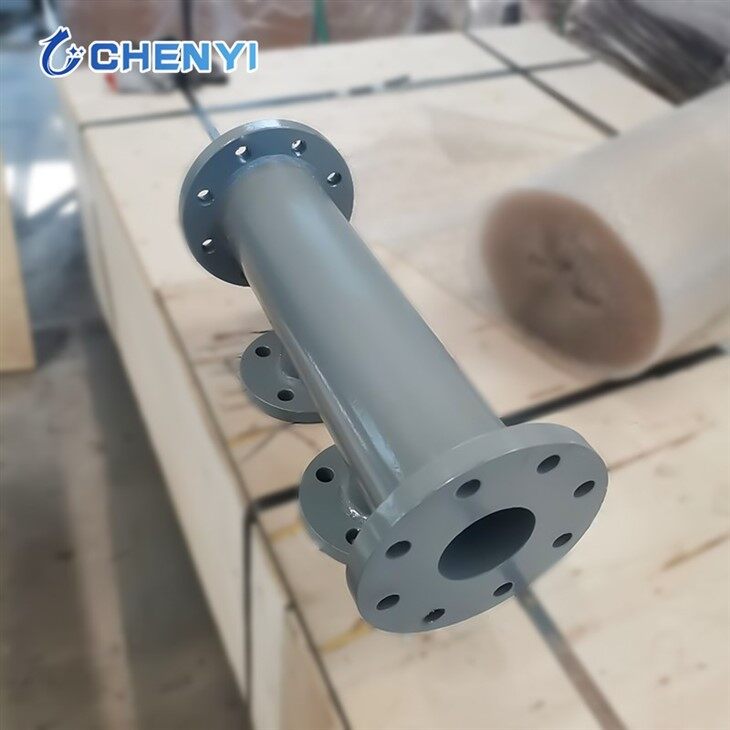

Various connection types, including flanges (ASME, GB standard) , welding ends, or quick-release couplings .
Need a Custom Solution?
Provide details on:
• Material handled (e.g., sand, slurry, acid).
• Particle size & abrasiveness.
• Flow rate, pressure, temperature.
Would you like a specific manufacturer recommendation or a comparison with alternative linings?
Installation Considerations
Handling: Avoid dropping or subjecting the pipes to sharp impacts, which could crack the ceramic lining .
Connections: They can be joined using standard flanges or by welding the steel outer casing, following the manufacturer's guidelines to prevent heat damage to the lining .
Adhesive Curing: For tile-lined pipes using epoxy, a sufficient curing time (e.g., over 48 hours in cold weather) is necessary before installation to ensure the bond is secure .
