Zibo Chenyi Advanced Materials Co., Ltd. is one of the leading manufacturers and suppliers of pulley ceramic lagging in China, also supports customized service. If you're going to buy CE approved pulley ceramic lagging made in China, welcome to get quotation from our factory. Quality products and low price are available.

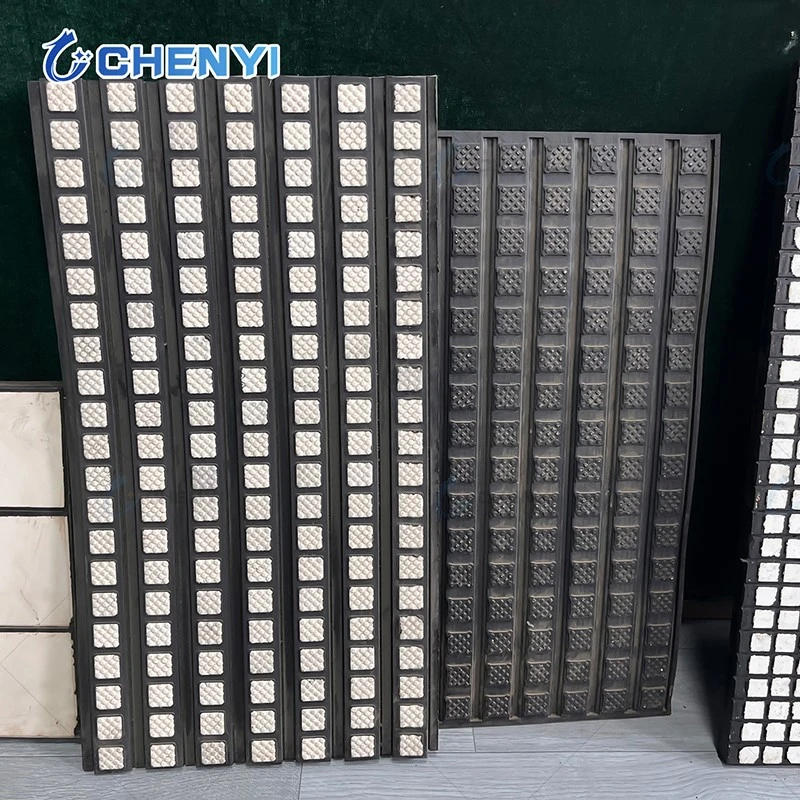

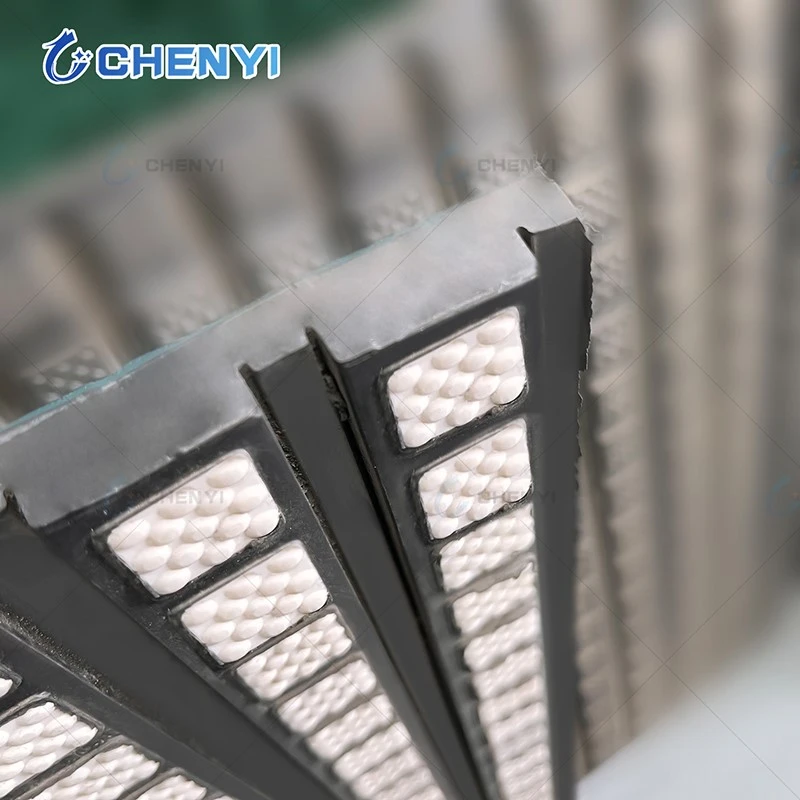

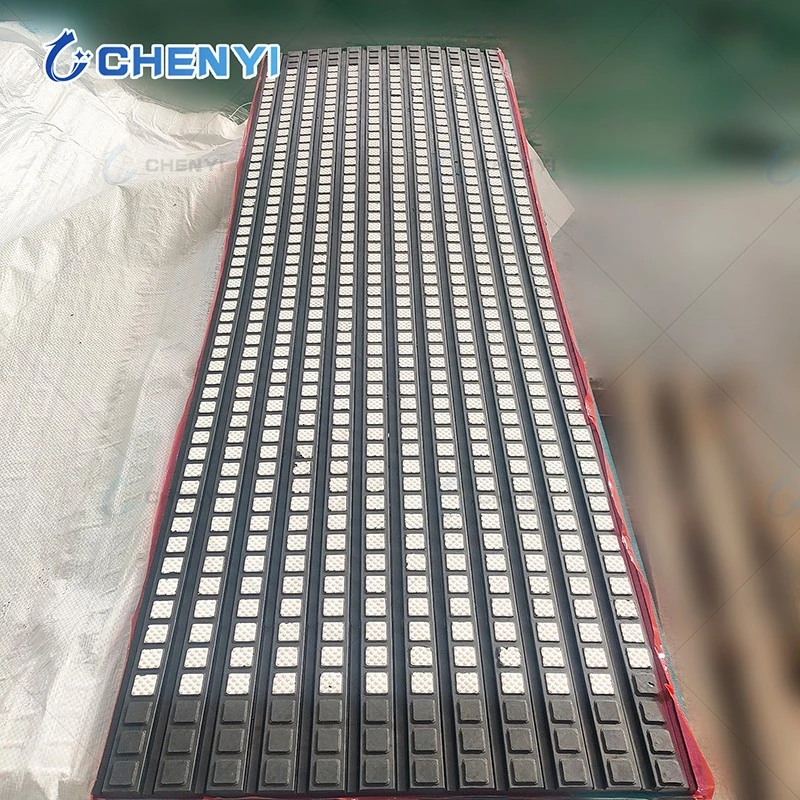

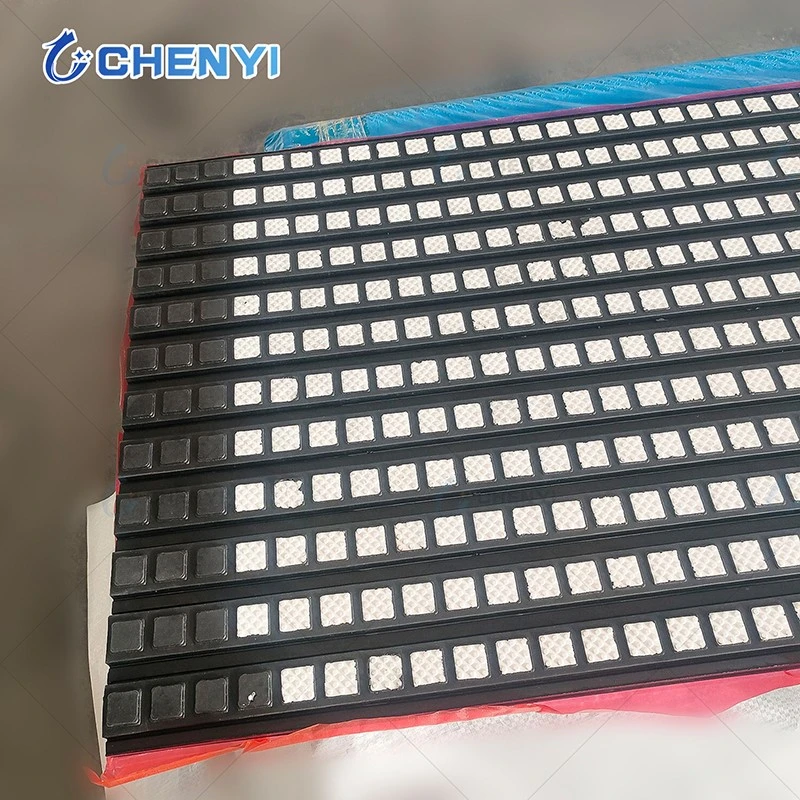

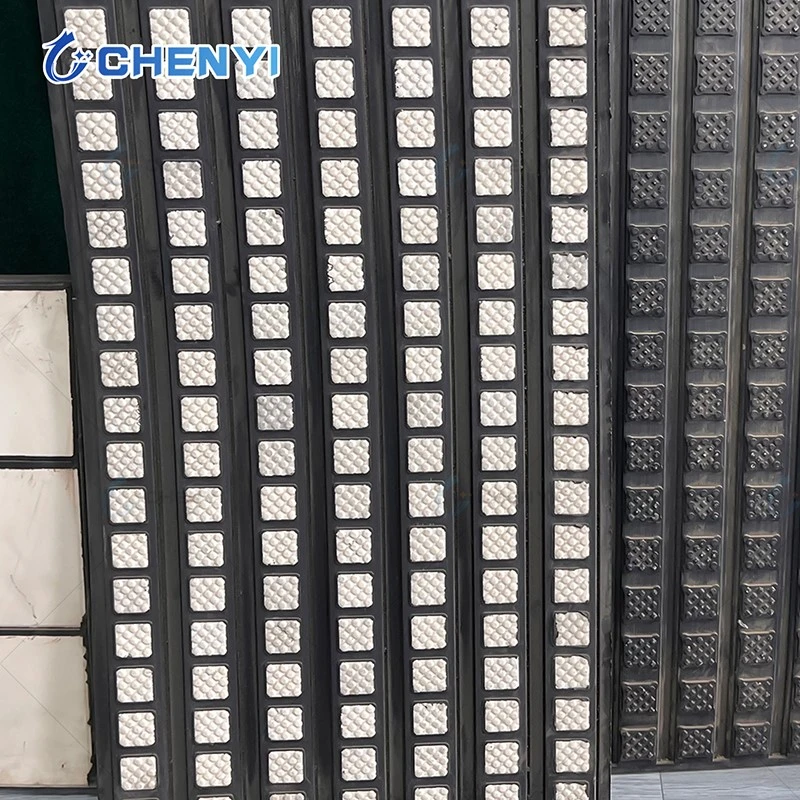

Pulley Ceramic Lagging
Pulley ceramic lagging is a special treatment used on the surface of conveyor belt rollers. It is commonly used to increase the friction between the drum and the conveyor belt and to reduce the adhesion of material to the drum, thereby increasing the efficiency and reliability of the conveyor system.
Rugular Size Of Ceramic Rubber Composite Liner
|
Normal Size |
50~800 |
The detailed specifications are based on factual conditions |
|
Thickness of Wear-resistant Ceramic Liner(mm) |
3~50 |
|
|
Thickness of Rubber |
4~8 |
Remark: Other sizes are available upon request.
Ceramic Rubber Composite Liner Technical Data Sheet
|
Name |
Project |
Unit |
Index |
|
Rubber |
Fracture Toughness |
20"C,Mpa % |
3.65 |
|
Thermal Shock Resistance |
ATc,°C |
250 |
|
|
Surface Roughness |
um |
V.9 |
|
|
Density |
g/cm3 |
≥1.2 |
|
|
Elongation |
% |
500 |
|
|
Tensile Strength |
Mpa |
18 |
|
|
Shore Hardness |
HA |
60±5 |
|
|
Peel Strength |
Mpa |
212 |
|
|
Temperature Range |
℃ |
-40-120 |
|
|
Steel |
Carbon Steel Plate |
Gpa |
Q235B,A36,SUS304 |
|
Thickness |
3-20 |
||
|
Bolt |
High Strength Bolts |
4.8Z8.8 |
|
|
Abrasion Resistance |
P=74N. n=800rpm. t=30min |
0.0005g |
|
|
Category |
CY90 |
CYT92 |
CY95 |
CYT95 |
CY99 |
CY-ZTA |
ZrO2 |
|
Al2O3 |
≥90% |
≥92% |
≥95% |
≥ 95% |
≥ 99% |
≥75% |
/ |
|
ZrO2 |
/ |
/ |
/ |
/ |
/ |
≥21% |
≥95% |
|
Density |
≥3.50g/ cm3 |
≥3.60g/cm3 |
≥3.65g/cm3 |
≥3.70g/cm3 |
≥3.83g/cm3 |
≥4.10g/cm3 |
≥5.90g/cm3 |
|
Water Absorption |
≤0.1% |
≤0.1% |
≤0.1% |
≤0.1% |
≤0.1% |
≤0.1% |
≤0.1% |
|
HV 20 |
≥900 |
≥950 |
≥1000 |
≥1100 |
≥1200 |
≥1350 |
≥1100 |
|
Rock Hardness HRA |
≥80 |
≥82 |
≥85 |
≥88 |
≥90 |
≥90 |
≥88 |
|
Bending Strength MPa |
≥180 |
≥220 |
≥250 |
≥300 |
≥330 |
≥400 |
≥800 |
|
Compression strength MPa |
≥970 |
≥1050 |
≥1300 |
≥1600 |
≥1800 |
≥2000 |
/ |
|
Fracture Toughness KIc MPam 1/2 |
≥3.5 |
≥3.7 |
≥3.8 |
≥4.0 |
≥4.2 |
≥4.5 |
≥7.0 |
|
Wear Volume |
≤0.28 cm3 |
≤0.25cm3 |
≤0.20cm3 |
≤0.15cm3 |
≤0.10 cm3 |
≤0.05cm3 |
≤0.02cm3 |
Features
1. Pulley ceramic lagging consists of high-strength ceramic particles embedded in abrasion-resistant rubber. The properties of the ceramic material reduce the likelihood of material adhesion, lower cleaning requirements, longer maintenance intervals, and lower overall maintenance costs.
2. The ceramic particles create a rough surface that increases the coefficient of friction, reduces slippage and improves the overall energy efficiency of the conveyor system.
3. Compared to traditional rubber covers, ceramic covers offer better wear and impact resistance, significantly extending the life of the rollers.
Areas of applications
1. Mining industry: especially when handling wet ores or sandy materials, it can effectively reduce the accumulation of materials on the drum.
2. Coal industry: for conveying wet ores or sandy materials, it can effectively reduce the accumulation of materials on the drum.
3. Coal industry: very useful for conveying wet coal and other easily adhered materials.
4. Cement Manufacturing: For conveying wet raw materials or finished products to minimize adhesion problems.
5. port logistics: for drums in bulk handling systems to improve performance and reliability.
Our Factory
We own full set of advanced production equipment, with advanced production technology and raw materials in domestic and abroad to provide tailor-made solutions for each customer.
Our main product: Rubber ceramic liner, polyurethane ceramic liner, ceramic pulley lagging, ceramic lined pipe, alumina ceramic product, silicon carbide product, ZTA product and other wear resistant product.
Products Market
Australia, America, Germany, Japan, Kazakhstan, Italy, Belgium,UK, Denmark and other marketing.
Our Certificate
ISO9001, 3 patents, UDEM, TUV.
Contact Information
Contact us for a quote or customization information.
E-mail: sales@zbchenyi.com
Tel/WhatsApp: +86 13853329949/ +86 13969321722
Contact: Cathy Wang
